Johnson® 09-814B F9 Impeller Kit Volvo Penta 875814 Caterpillar 4L8470

High-quality marine engine spare parts.

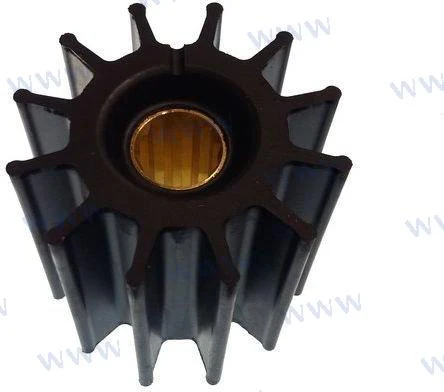

Genuine Johnson Pump® flexible impeller kit. This Johnson 09-814B impeller has application to many F9 Johnson pumps.

Johnson suggests that impellers be replaced annually, or at least once a year, depending on the application. However, it is advisable to inspect them frequently to detect any excessive abrasions or damage. Additionally, impellers should be removed from the pump housing during extended periods of inactivity to prevent ultraviolet deterioration, vanes from setting into position, and copper bonding between the impeller and the housing. Engine overheating is the primary cause of premature engine wear, and any issues with the impeller can result in this.

Impeller specifications:

• Diameter: 3 47/64" ~ 95.00mm
• Width: 3 1/2" ~ 88.90mm
• Shaft: 1" ~ 25.40mm
• Blades: 12
• Keyway: Spline
• Material: Neoprene

This kit includes gaskets/o-rings and a lubricating glycerin packet.

Johnson® 09-814B F9 Impeller Kit Volvo Penta 875814 Caterpillar 4L8470

This product replaces the following manufacturer's part nr:

• Johnson Pump order number: 09-814B, JOH09-814B
• Jabsco: 17936-0002
• Volvo Penta: 875814-6, 875697, 84596, 844683, 842857
• Caterpillar: 4L8470

• Detroit Diesel: 5196168, 08924839, 5198550

• Perkins: 460027

• Scania: 323897, 1923450, 2295719

• Vetus: IMP00801

• Yanmar: 165000-35270
• Recmar: REC875697
• CEF: 500145T, CEF500145T

The references that are listed here are trademarks that apply to the respective trademark owners. The references are used only for a reference purpose. Our product is compatible with these reference numbers. Please note that our product is an aftermarket product (non-OEM), unless otherwise stated.
